Grundlegende Informationen
Herkunftsort: China
Markenname: ZONCN
Zertifizierung: KC; CE
Modellnummer: NZ100-1R5G-4
Min Bestellmenge: 1 Stück
Verpackung Informationen: Innen: Kiste; Außen: Karton
Lieferzeit: 7 bis 30 Tage
Zahlungsbedingungen: T/T, L/C, Western Union, Paypal
Versorgungsmaterial-Fähigkeit: 100,000 Stück/Monat
Bestpreis Kontakt
Erzeugnis: variable Frequenz-Antriebe Marke: ZONCN
Serie: NZ100 Steuerungsmodus: V/F-Steuerung
PID-Steuerung: Eingebettet Leistung: 1.5KW/2HP
Kommunikation: RS485 Schutz: IP20
Kühlmodus: Zwangsluftkühlung OEM: - Ja, das ist es.
Hervorheben:

1.5kw Variable Frequency Drives

,

380v Variable Frequency Drives

,

220v Variable Frequency Drives

Chinese VFD Factory 220v 380v Variable Frequency Drives 0.75kw 1.5kw





ZONCN NZ100 Series VFD - Superior Features & Performance

  1. Advanced Control Capabilities

  • This high-performance VFD implements precise V/F control algorithm

  • The intelligent VFD integrates built-in PID controller for optimal regulation

  1. User-Friendly Interface

  • All connection ports on this VFD are externally accessible for easy wiring

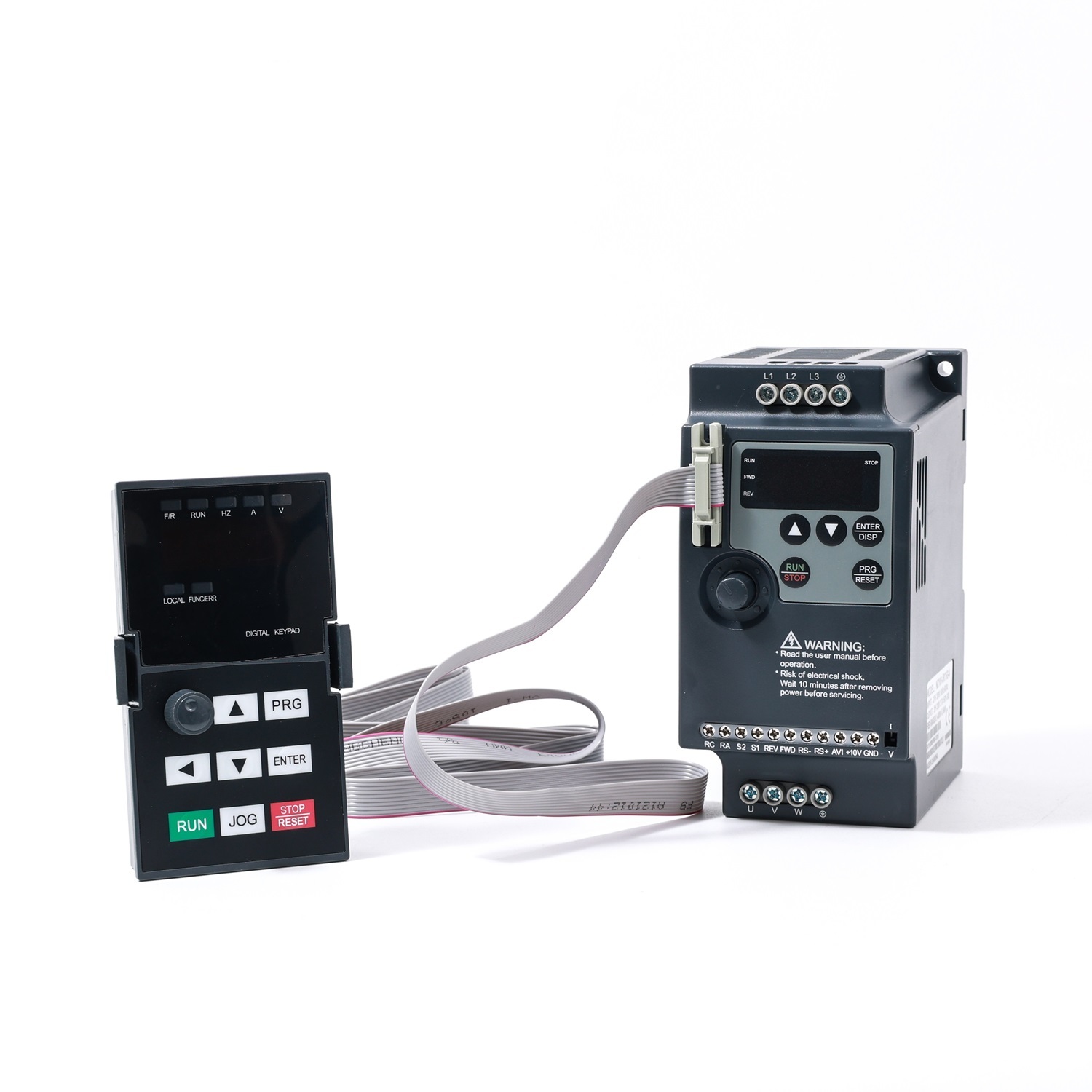

  • The VFD supports detachable remote control panel for flexible operation

  • Convenient potentiometer knob comes standard with this VFD for manual speed adjustment

  1. Comprehensive I/O Options

  • Multiple analog input terminals (0-10V/4-20mA) are provided on this VFD

  • The VFD features RS485 communication supporting MODBUS RTU/ASCII

  1. Space-Saving Design

  • With compact dimensions, this VFD fits perfectly in space-constrained applications

  • VFD models up to 5.5KW support convenient 35mm DIN rail mounting

  • The slim-profile VFD optimizes control cabinet space utilization

  1. Customization Flexibility

  • This OEM-oriented VFD accepts customized parameter settings

  • The programmable VFD can be tailored for specific applications

  1. Reliable Operation

  • The rugged VFD operates reliably in -10°C to 50°C environments

  • This protected VFD includes comprehensive safety features

  • Industrial-grade components ensure this VFD delivers long service life

  1. Energy Efficiency

  • The smart VFD incorporates advanced energy-saving algorithms

  • This efficient VFD reduces power consumption significantly

  • Automatic optimization makes this VFD ideal for continuous operation

The NZ100 series VFD combines compact design with professional functionality, making this VFD perfect for pumps, conveyors and OEM equipment. With its robust construction and intelligent features, this VFD delivers exceptional value across various applications.



VFD inverter's Nameplate Description



Chinese VFD Factory 220v 380v Variable Frequency Drives 0.75kw 1.5kw 0

VFD inverter's Specification



VFD Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.































VFD inverter's Dimension



Chinese VFD Factory 220v 380v Variable Frequency Drives 0.75kw 1.5kw 1





VFD inverter's Wiring Diagram



Chinese VFD Factory 220v 380v Variable Frequency Drives 0.75kw 1.5kw 2



VFD inverter's Workshop

Chinese VFD Factory 220v 380v Variable Frequency Drives 0.75kw 1.5kw 3





VFD inverter's Application

Chinese VFD Factory 220v 380v Variable Frequency Drives 0.75kw 1.5kw 4
